MA20100227-BL FIREBOY MA2 SERIES MANUAL/AUTOMATIC DISCHARGE FIRE EXTINGUISHER

Description

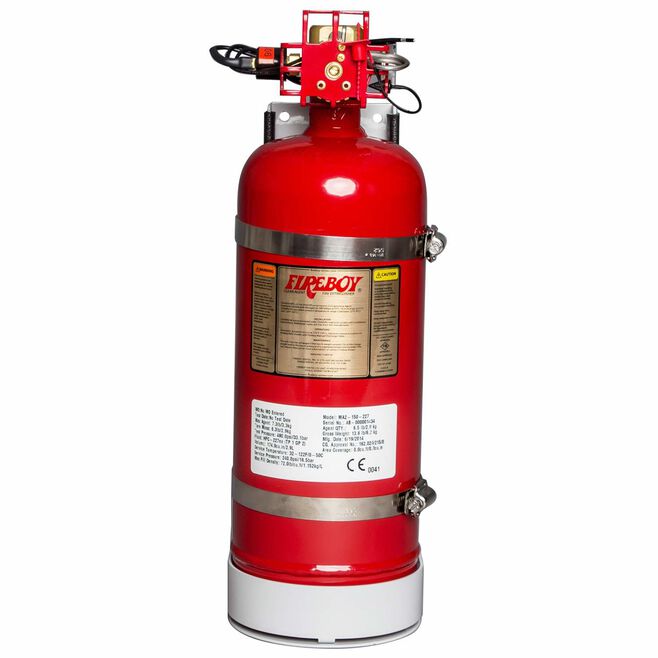

The Fireboy MA2-MA20100227-BL extinguisher is a clean-agent, pre-engineered fixed system intended to protect enclosed engine rooms or machinery spaces up to 100 cubic feet. It discharges automatically when ambient temperature reaches 175°F (79°C) but can also be triggered manually via accessory release cable. Filled with HFC-227ea (commonly known as FM-200®/FE-227™), it extinguishes fires by total flooding—leaving no water or powdery residue, making it ideal for sensitive equipment and occupied spaces. The unit includes a stainless steel mounting bracket and a helm station status indicator light, allowing vertical, horizontal, or upward-angled mounting.

• Model/SKU: MA20100227-BL

• Brand: Fireboy / Xintex

• Agent Type: HFC-227ea clean agent (FM-200 / FE-227 equivalent)

• Activation Type: Automatic at 175°F (79°C) or manual via cable (manual discharge cable sold separately)

• Coverage: Protects engine rooms up to ~100 cu ft (depends on model size chosen)

• Mounting Options: Stainless steel mounting bracket included; unit can be mounted vertically, angled upward, or horizontally

• Product Includes: Helm station LED panel light / system status indicator light; Owner’s Manual / Installation Instructions

• Clean Agent Benefit: No mess residue; safe for occupied spaces; approved/recommended for use where equipment or electronics are present and where cleanup from dry or wet agents would be problematic
