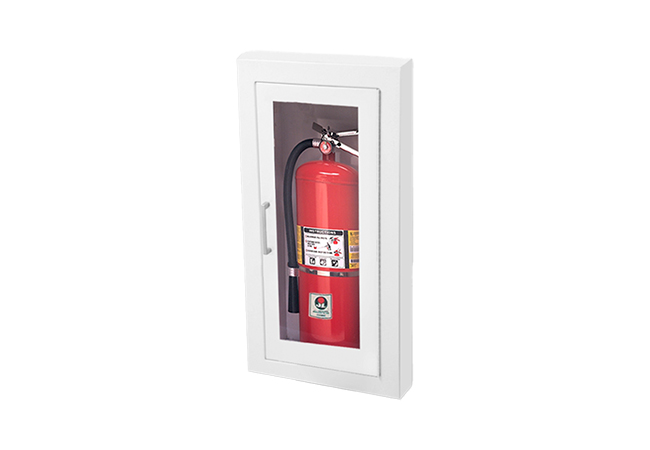

C1016F10 SEMI-RECESSED 10LB CABINET – WHITE

Description

The JL Ambassador C1016F10 is a semi-recessed steel cabinet built to house up to a 10 lb fire extinguisher. Its white powder-coated cold-rolled steel tub and trim resist corrosion and damage, while the full-view door with 0.090″ clear acrylic glazing offers maximum visibility of the extinguisher inside. The continuous hinge and zinc-plated pull handle/roller catch deliver smooth access, and the cabinet is designed to protrude only 1½″ from the wall (with the handle adding an extra ⅝″), making it ADA-friendly and suitable for commercial settings where space, appearance, and readiness matter.

• Model/SKU: C1016F10 / 1016F10

• Brand: JL Industries (Ambassador Series)

• Function: Secure enclosure for 10 lb fire extinguishers, with visibility and semi-flush mounting to protect the unit and allow easy access

• Capacity: Holds 2.5 lb, 5 lb, or 10 lb extinguishers

• Materials & Finish: Tub is 24-gauge galvanized steel; door & trim are 20-gauge cold-rolled steel, all with white powder-coat finish; glazing is 0.090″ clear acrylic

• Door & Hardware: Full-view door, zinc-plated pull handle, roller catch; continuous hinge opens 180°

• Trim & Projection: 1-½″ square-edge trim; semi-recessed style projecting approx 1-½″ from wall, with handle projecting additional ⅝″

• Rough Wall Opening: ~11-½″ w × 25″ h × 4-5/8″ d

• Tub Interior Dimensions: ~10-½″ w × 24″ h × 6″ d

• Exterior Dimensions (Overall): ~13-7/8″ w × 27-3/8″ h × approx 6-to-depth of cabinet including door/glazing/trims (varies by trim and handle type)

• ADA Compliance: Designed to meet maximum protrusion guidelines and handle height compliance (handle ≤ 48″ above finished floor)
