KC-FSRZI-A REMOTE ZONE INDICATOR

Description

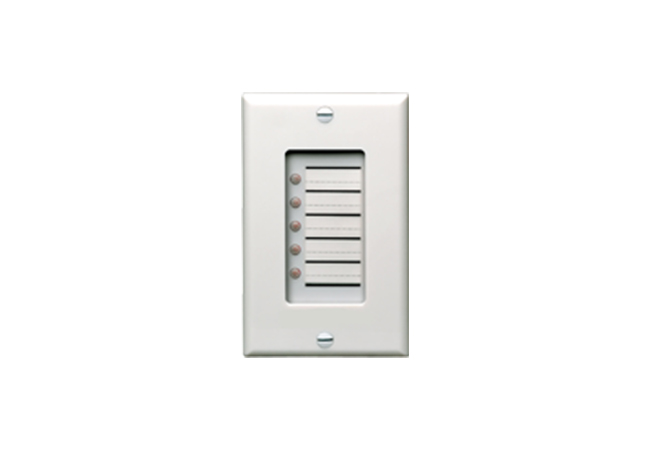

The FSRZI-A Remote Zone Indicator is a low-voltage, wall-mount LED annunciator module that displays alarm status for up to five zones of a compatible fire-alarm control panel. It mounts in a standard single-gang electrical box (or multi-gang with optional trim plate) and translates zone-level signals from the panel into a visible LED indication, enabling remote monitoring of which zones are in alarm. Jumper-selectable settings allow the module to indicate either zones 1–5 or zones 6–10, facilitating flexible distribution of zone indicators in larger systems.

Model/SKU: FSRZI-A
Brand: Kidde / Edwards Signaling
Function: Remote zone annunciator — provides visible LED indication of alarm zones for a connected fire-alarm control panel (IDC zones).
Ratings: Operates on 18.8–27.3 VDC (nominal 24 VDC) input; typical current draw ~8 mA standby, ~76 mA when indicating alarm.
Dimensions: Fits in a standard 1-gang electrical box; module depth and face-plate dimensions per standard single-gang form-factor.
Material: Plastic housing suitable for indoor flush-mount installation in standard wall boxes.
Supported Zone Indication: 5 red LEDs — jumper-configurable to indicate either IDC zones 1–5 or zones 6–10.
Installation / Mounting: Mounts to standard 1-gang (or larger) electrical box; can be installed singly or in combination with other annunciators (e.g., system indicator) in 2-, 3-, or 4-gang boxes via optional trim plates (FSAT2/FSAT3/FSAT4).
Wiring / Circuit Requirements: Connects to supervised serial annunciator bus using 12–18 AWG wiring; must be powered by approved 24 VDC regulated / power-limited supply.
Environmental Ratings: Operating temperature range 32 °F to 120 °F (0 °C to 49 °C); 0–93% non-condensing humidity.
Why It Matters: Provides remote visibility of alarm zones, allowing maintenance staff or building personnel to quickly identify active alarm zones without access to the main panel — improving response time and situational awareness during fire events.
