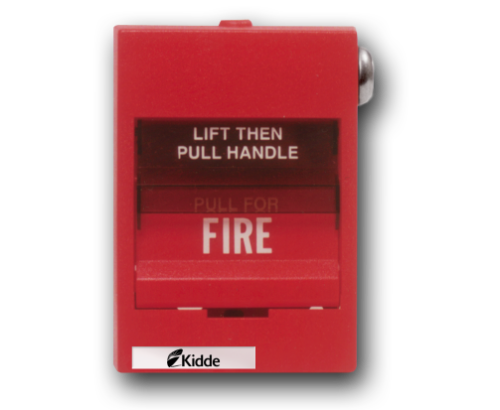

KC-FX-278 KIDDE DOUBLE-ACTION PULL STATION

Description

The FX-278 Kidde Double-Action Pull Station is an addressable manual fire-alarm initiating device that requires two distinct user actions (“Lift then Pull”) to activate, reducing false-alarm risk. It includes an integral analog mini-module on the backplate for individual device addressing, allowing the station to report to the system control panel as a unique addressable point. Once activated, the pull station latches the alarm condition until manually reset, sending a supervised alarm signal to the control panel.

Model/SKU: FX-278
Brand: Kidde
Function: Addressable manual pull-station initiating device for fire alarm systems — manually triggers an alarm condition when the “Lift then Pull” handle is actuated.
Operation: Double-action (user must first lift cover, then pull handle) — helps prevent accidental activations.
Addressing: Rotary-dial addressing (tens and ones switches) allows unique device address assignment within an intelligent panel’s SLC.
Contact Type: Normally-open dry contact, supervised by the mini-module; on activation the module latches alarm until manual reset.
Wiring / Compatibility: Connects to the system SLC/loop wiring; supervised, power-limited circuit; wire gauge 12–18 AWG standard.
Environmental / Installation: Suitable for ambient temperatures 32 °F to 120 °F (0–49 °C), relative humidity up to 93% non-condensing. Install in standard single-gang or 4-in-square electrical boxes (with mud-ring if needed) or compatible surface-mount back boxes.
Material / Housing: Durable Lexan or rugged housing for reliable use — designed for commercial fire-alarm environments.
Why It Matters: Provides a reliable, code-compliant manual initiation point for fire alarms that integrates seamlessly into intelligent two-wire addressable systems, with a lower risk of accidental discharge thanks to its double-action design and supervised module.
