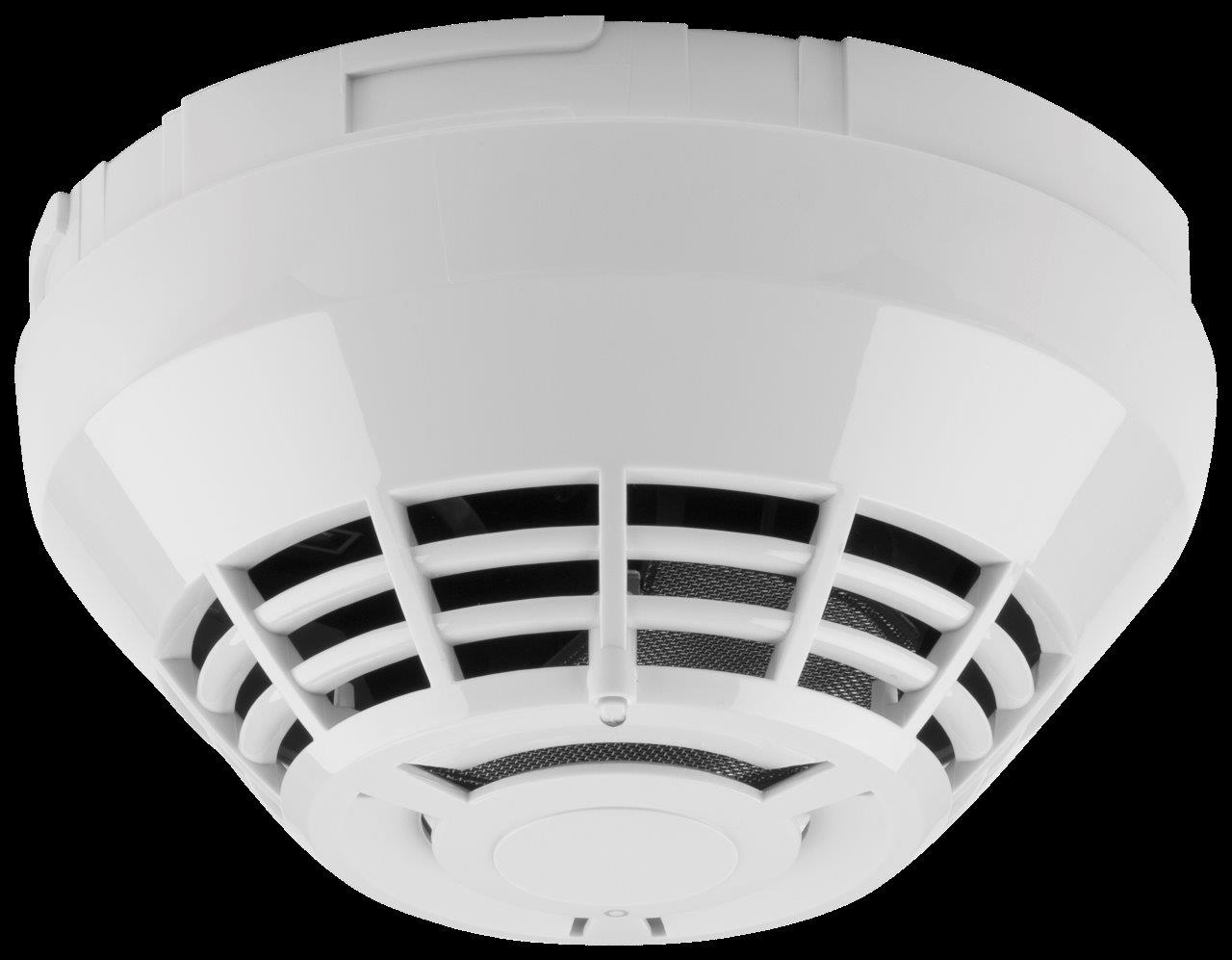

KC-KC2-OS KIDDE CONVENTIONAL PHOTOELECTRIC SMOKE DETECTOR HEAD

Description

The KC2-OS Kidde Conventional Photoelectric Smoke Detector Head is a two-wire initiating device designed to detect the presence of smoke in conventional fire alarm systems. It uses an advanced photoelectric sensing chamber to discriminate between real smoke from fire and nuisance particles, providing reliable alarm initiation and status signaling to the control panel. The detector includes a tri-color LED indicator for alarm, trouble, and standby conditions and is intended for installation with a compatible detector base on a supervised initiating device circuit.

• Model/SKU: KC2-OS

• Brand: Edwards Signalling (Kidde)

• Function: Conventional two-wire photoelectric smoke detection head that senses smoke and signals alarm conditions to a fire alarm control panel

• Ratings: Operates on 6.5 – 33 V DC two-wire circuit; self-diagnostic and drift compensation features for stable performance

• Dimensions: Approx. 4″ diameter × 1.75″ height (detector head)

• Material: White plastic housing

• Compatibility: Designed to attach to standard Edwards/Kidde two-wire detector bases (sold separately)

• Additional Specs: Tri-color LED provides solid red for alarm, flashing yellow for trouble, and flashing green for standby; advanced nuisance discrimination and environmental compensation

• Why It Matters: Provides reliable early smoke detection with reduced false alarms and visual status indication, essential for conventional fire alarm systems in commercial and industrial settings.
