FX-64R – KIDDE COMMERCIAL 64-POINT INTELLIGENT FIRE ALARM CONTROL PANEL

Description

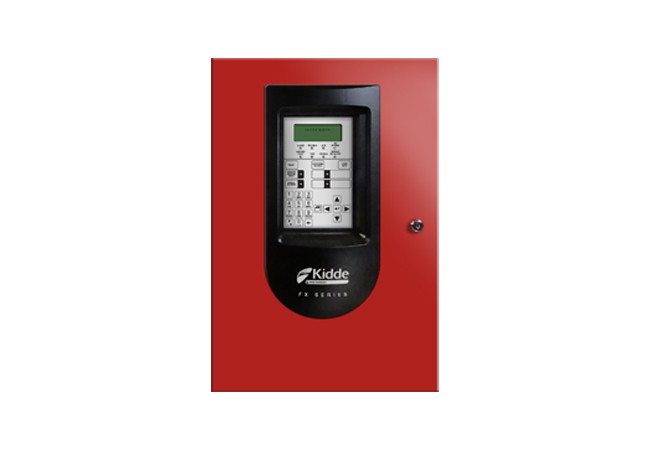

Kidde Commercial FX-64R Intelligent Fire Alarm Control Panel is a one-loop addressable fire alarm system designed for small to mid-sized commercial applications. The panel supports up to 64 intelligent device addresses and includes two Class B notification appliance circuits (NACs), with optional Class A operation available through additional modules. The FX-64R features a red surface-mount enclosure, automatic device programming, a backlit LCD display, and support for optional communications and annunciation accessories.

Key Features

Manufacturer: Kidde Commercial / Edwards

Model: FX-64R

Product Type: Intelligent Addressable Fire Alarm Control Panel

System Capacity: Up to 64 intelligent device addresses

SLC Loops: 1

SLC Wiring: Class A or Class B

Maximum T-Taps: 63

Maximum SLC Wiring Length: 20,000 ft

Notification Appliance Circuits: 2 Class B NACs

Optional NAC Configuration: Class A with optional SA-CLA module

Maximum NAC Output: 2.5 A FWR per circuit

Total NAC Output: 3.75 A FWR at 120 VAC / 60 Hz

Primary Power: 120 VAC, 60 Hz, 1.3 A maximum

Operating Voltage: 24 VDC nominal

Standby Current: 155 mA

Alarm Current: 204 mA

Display: 4 × 20 character backlit LCD

Remote Annunciators: Supports up to 8

Programmable Controls: 2 programmable switches with LEDs and custom labeling

Relay Outputs: Two Form C and one Form A

Enclosure: Red surface-mount enclosure

Dimensions: Approximately 21.5″ H × 15.5″ W × 3.85″ D

Operating Temperature: 32°F to 120°F

Relative Humidity: 0–93% noncondensing

Dialer: Not included; optional SA-DACT dialer sold separately

Communications Options: Optional Ethernet, RS-232, USB, and dialer modules

Application: Addressable fire alarm systems for small to mid-sized commercial buildings
